DT Swiss RWS Aluminum Thru Bolt 100mm/9mm
DT Swiss RWS Aluminum Thru Bolt 100mm/9mm
The mounting solution for Thru Bolt front wheels.
With an axle diameter of 9 mm in the front and 10 mm in the rear, the thru bolt system is a special kind of axle mounting for bikes. The DT Swiss thru bolt system is compatible with standard quick-release dropouts but requires matching hubs. The stronger wheel connection results in a greater stiffness.
Type
Lever material : Aluminum
Range of use & type : RWS MTB
Technology
We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

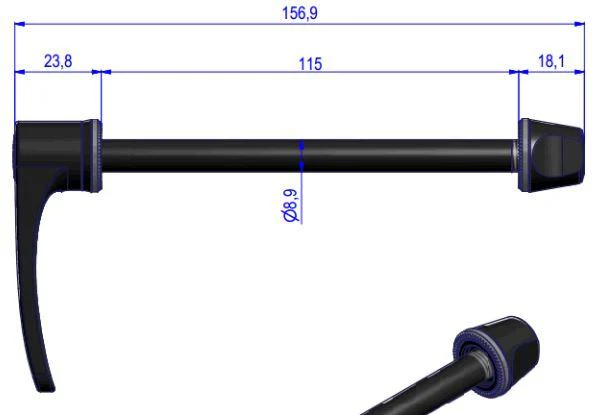

Dimensions
Axle system : 9 mm Thru Bolt
Built-in dimension : 100 mm
Length [mm] (L) : 115
Thread length [mm] (G) : 20
Thread : M9 X 1
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DT Swiss RWS Aluminum Thru Bolt 100mm/9mm
The mounting solution for Thru Bolt front wheels.
With an axle diameter of 9 mm in the front and 10 mm in the rear, the thru bolt system is a special kind of axle mounting for bikes. The DT Swiss thru bolt system is compatible with standard quick-release dropouts but requires matching hubs. The stronger wheel connection results in a greater stiffness.
Type
Lever material : Aluminum
Range of use & type : RWS MTB
Technology
We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.
Dimensions
Axle system : 9 mm Thru Bolt
Built-in dimension : 100 mm
Length [mm] (L) : 115
Thread length [mm] (G) : 20
Thread : M9 X 1
